Boiler panels,
shop-built.
Wall-hung condensing boiler, circulator pumps, manifold, controls — all pre-assembled on a stainless or aluminum checker-plate backer in my shop. Delivered and installed across Elgin & Middlesex Counties.

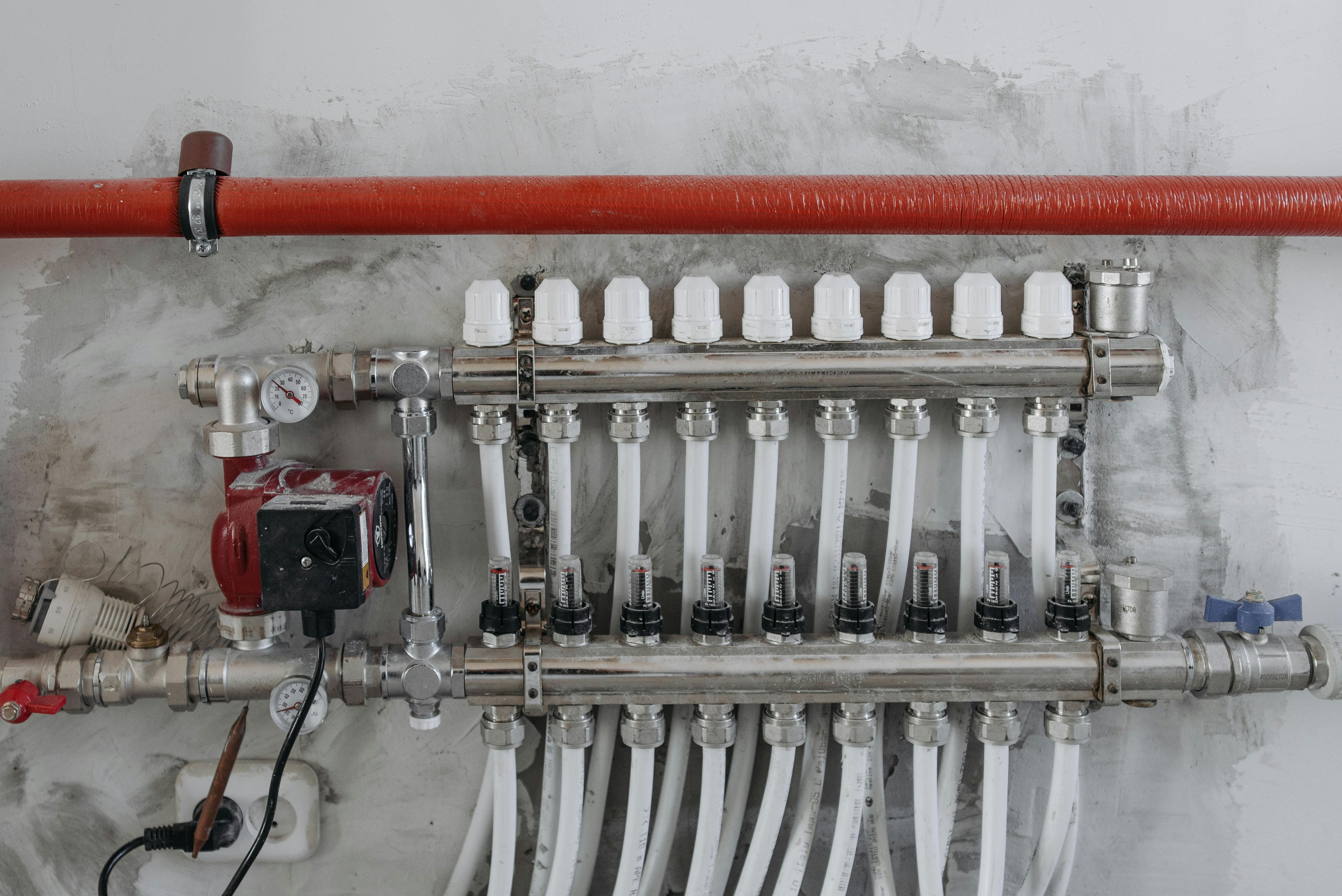

Reference: hydronic manifold + pump install — swap with your own shop builds via /edit
How it works
Built in my shop.
Installed in your house.
I fabricate the full panel in shop — boiler, manifold, pumps, controls, all pressure-tested before it leaves. Delivered to your home, bolted to the wall, hooked up to zone loops + intake/exhaust + gas, commissioned with a combustion analyzer, walked through with you.
Permits and TSSA gas certification handled. Same plumber from fab through warranty.
Delivered by me — walked through with you
I bring it on my truck right to your door, bolt it to the wall, hook up loops + gas + venting, fire it on a combustion analyzer, and walk you through every valve, manifold port, and control on the panel before I leave. No skid, no freight handoff, no “call the installer” — same plumber start to finish.
Sizing
What size do
you need?
Rule-of-thumb sizing for Ontario climate, well-insulated homes. A formal heat-loss (Manual J) calc tightens this on the final quote — included free with every package.
| Square footage | Typical home | BTU range | Zones | Package fit |
|---|---|---|---|---|
| 800 – 1,200 sq ft | Tight bungalow / condo | 28-48k BTU/h | 2-3 zones | Compact → |
| 1,200 – 1,800 sq ft | Mid bungalow / townhouse | 42-72k BTU/h | 3 zones | Standard → |
| 1,800 – 2,500 sq ft | Standard 2-storey family | 63-100k BTU/h | 3-4 zones | Standard → |
| 2,500 – 3,500 sq ft | Large 2-storey | 87-140k BTU/h | 5-6 zones | Estate → |
| 3,500 – 5,000 sq ft | Custom home / addition | 122-200k BTU/h | 6-8 zones | Estate Plus → |
| 5,000+ sq ft | Light commercial / shop+house | 175k+ BTU/h (twin cascade) | 8+ zones | Estate Plus → |
Standard packages
Four pre-spec'd
starting points.
Pick the closest match to your home. Final boiler + pump count tuned to your heat-loss calc. Every package can be customized for pump orientation (left, right, up, down) based on where your zone loops enter the panel.
3 zones
Compact Panel
Tight bungalow, condo, or small 2-storey under 1,500 sq ft. Combi unit handles heat + DHW from a single appliance.
Boiler
Navien NCB-190/060H combi · 60k BTU heat / 190k DHW
What's on the panel
- ·Navien NCB-H combi boiler
- ·Grundfos Alpha2 primary circulator (ECM)
- ·2× Grundfos UPS15-58FC zone circs
- ·Caleffi TwistFlow 3-loop SS manifold
- ·Taco SR503 switching relay
- ·Expansion tank + air separator + fill valve
- ·Stainless checker-plate backer panel
Installed · Elgin & Middlesex
$8,900 – $11,900 installed
4 zones
Standard Panel
1,500-2,500 sq ft 2-storey family home. The most-quoted tier. Mixed radiant + baseboard, optional DHW tie-in.
Boiler
Viessmann Vitodens 100-W B1HE-85 (95% AFUE) · or Lochinvar Knight WHB-110N
What's on the panel
- ·Wall-hung condensing boiler (Viessmann or Lochinvar)
- ·Grundfos Alpha2 primary (ECM)
- ·3× Taco 007e ECM zone circulators
- ·Caleffi TwistFlow 4-loop SS manifold
- ·HBX CPU-0550 modulating control (Canadian-made)
- ·Hydraulic separator + expansion tank + fill valve
- ·Aluminum checker-plate backer panel
Installed · Elgin & Middlesex
$12,500 – $16,500 installed
6 zones
Estate Panel
2,500-3,800 sq ft large 2-storey. Higher BTU, six zones, indirect DHW priority loop, premium ECM circs throughout.
Boiler
Viessmann Vitodens 100-W B1HE-150 · or Weil-McLain Evergreen Pro EVG-155
What's on the panel
- ·150-155k BTU wall-hung condensing boiler
- ·Grundfos Alpha2 primary (ECM)
- ·5× Taco 007e ECM zone circulators
- ·Caleffi TwistFlow 6-loop SS manifold with flow meters
- ·HBX CPU-0600 Wi-Fi multi-stage control
- ·Indirect DHW priority loop wired
- ·Full air + dirt separator system
- ·Stainless checker-plate backer panel
Installed · Elgin & Middlesex
$18,500 – $24,000 installed
8 zones (incl. DHW priority)
Estate Plus
3,800-5,000+ sq ft custom home or addition. Eight zones with DHW priority, optional snow-melt loop, dual ECM primaries.
Boiler
Viessmann Vitodens 100-W B1HE-199 · or Lochinvar Knight WHB-199N
What's on the panel
- ·199k BTU wall-hung condensing boiler
- ·Dual Grundfos Alpha2 ECM primaries
- ·6× zone circulators (Taco 007e or 0010-F3 for long loops)
- ·Dual Caleffi manifolds + flow meters
- ·HBX CPU-0600 with EXP zone module
- ·Mixing valve for low-temp radiant
- ·Indirect DHW priority loop
- ·Premium stainless checker-plate panel
Installed · Elgin & Middlesex
$26,000 – $34,000 installed
Customization
Built to
your mechanical room.
Boiler choice
Viessmann, Navien, NTI, Lochinvar — sized to your home's heat-loss. European stack or Korean / NB-built options.
Zones & pumps
3 to 12+ circulator zones. Grundfos UPS, Alpha2 ECM, or Taco 007 / 0010 depending on head + flow.
Panel layout
Pump orientation: left / right / up / down per zone. Panel dimensions to fit your mechanical room. Stainless or aluminum checker-plate.
Controls
Outdoor reset, multi-stage, weather-compensated. HBX, Tekmar, or boiler-native control board.
Manifolds
Caleffi or Uponor stainless manifolds. Per-zone flow meters and isolation valves. Sized to your loop count.
Delivery & walkthrough
Delivered on my truck across Elgin & Middlesex, bolted to your wall same day, fired on a combustion analyzer, and walked through valve-by-valve before I leave. No freight handoff, no second installer.
